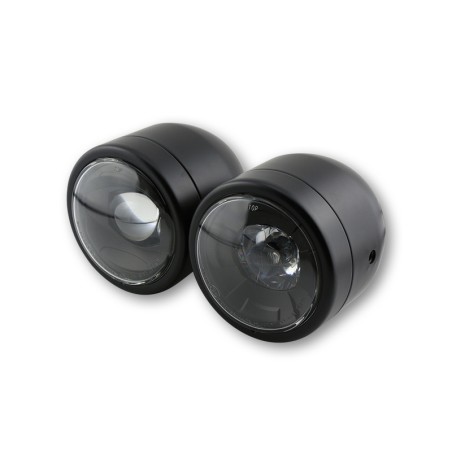

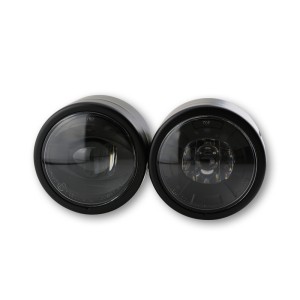

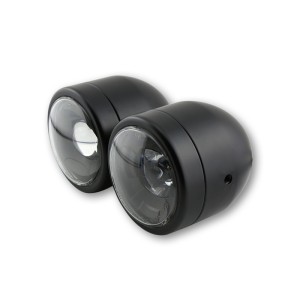

HIGHSIDER smart LED headlight TWIN, black, side mounting

Faro LED inteligente HIGHSIDER TWIN, color negro, montaje lateral.

HIGHSIDER smart LED headlight TWIN with low beam and high beam, the LED headlight set in a sturdy metal housing for side mounting gives your bike the special look. The 4 inch low beam and driving lamp is universally usable for all motorcycle conversions.
Available in chrome-plated and black version, E-tested.
It is necessary to connect a parking light separately, as this is not integrated in any of the headlights.

Dimensions:
Height: 107 mm
Width: 215 mm
Depth: 130 mm
Depth from thread: 60 mm
Diameter Inserts: 91 mm
Cable length: approx. 600 mm

housing:
material: metal
fixing: lateral

connections:
White = Low beam (+)
Blue = High beam (+)
Green = Ground (-)
With wiring harness and 3-pin plug for H4

Scope of supply: 1 piece

Note:
Without parking light, please order separately if necessary.

Daytime running lights/parking light combinations:
Article no. 222-503 HIGHSIDER smart LED daytime running light with parking light function, black with universal holder
article no. 222-511 HIGHSIDER LED daytime running light PENTA with 5 LEDs, parking light function

parking light:
article no. 223-323 HIGHSIDER smart Universal TRI-LED parking light with holder and self-adhesive foil
article no. 223-324 HIGHSIDER smart MINI LED parking light, round, lens diameter 14.8 mm
article no. 223-325 HIGHSIDER smart Universal LED parking light, lens diameter 23 mm
article no. 223-330 HIGHSIDER smart LED parking light, round, diameter 24.7 mm, with universal holder
article no. 223-330 223-331 HIGHSIDER smart LED parking light, round, diameter 24.7 mm, with M12 screw
article no. 223-358 HIGHSIDER smart LED parking light MICRO PIN for installation, tinted glass
article no. 223-359 HIGHSIDER smart LED parking light MODUL 2 with 2 SMDs, oval, tinted glass, for installation
