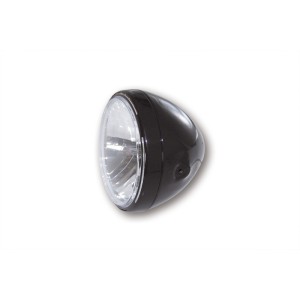

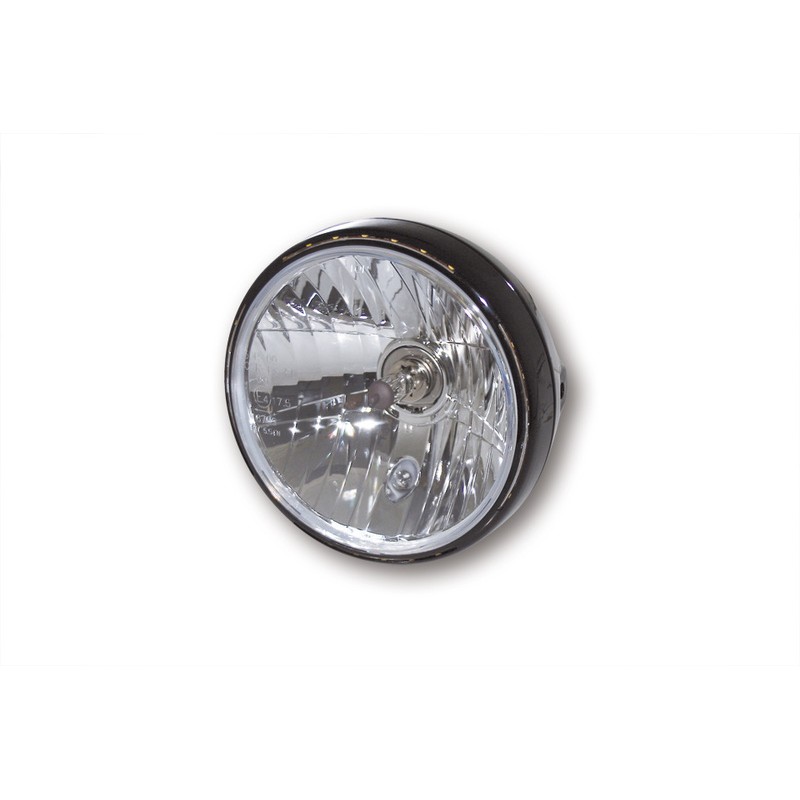

HIGHSIDER smart 7 inch headlight RENO 2, black glossy

Faro delantero inteligente HIGHSIDER de 7 pulgadas RENO 2, en negro brillante.

HIGHSIDER smart RENO 2
7 inch main headlight with LED position light in lamp ring. H4 prism reflector in black or chrome metal housing with M8 side mounting. E-examined.

Headlamp dimensions:
Housing diameter: 200 mm
Headlamp insert diameter: 178 mm
Housing depth: 160 mm
Distance between mounting holes (centre - centre): 170 mm
Distance between mounting hole (centre) and end of housing: approx. 90 mm
Fixing: lateral with M8 threaded bolt

Technical data:
3-way plug for H4 insert
green = ground (-)
white = low beam (+)
blue = high beam (+)

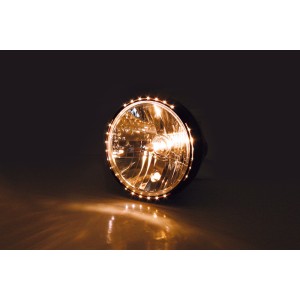

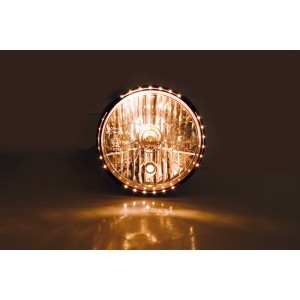

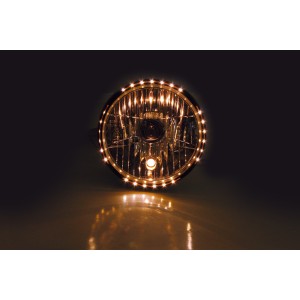

LED ring for front position light
brown = plus (+)
black = ground (-)

scope of supply: 1 piece

spare parts:
symmetrical insert: type (-)
white = low beam (+)
blue = high beam (+)
LED ring for front position light
brown = plus (+)
black = ground (-)

scope of supply: 1 piece
>br/>spare parts:
symmetrical insert: type (-)
s No. 226-178
Replacement bulb H4 Art. No.:
209-101 Performance +50%
209-105 P43T
209-114 Duty / Highlife
209-121 Cobalt
209-122 Power White
