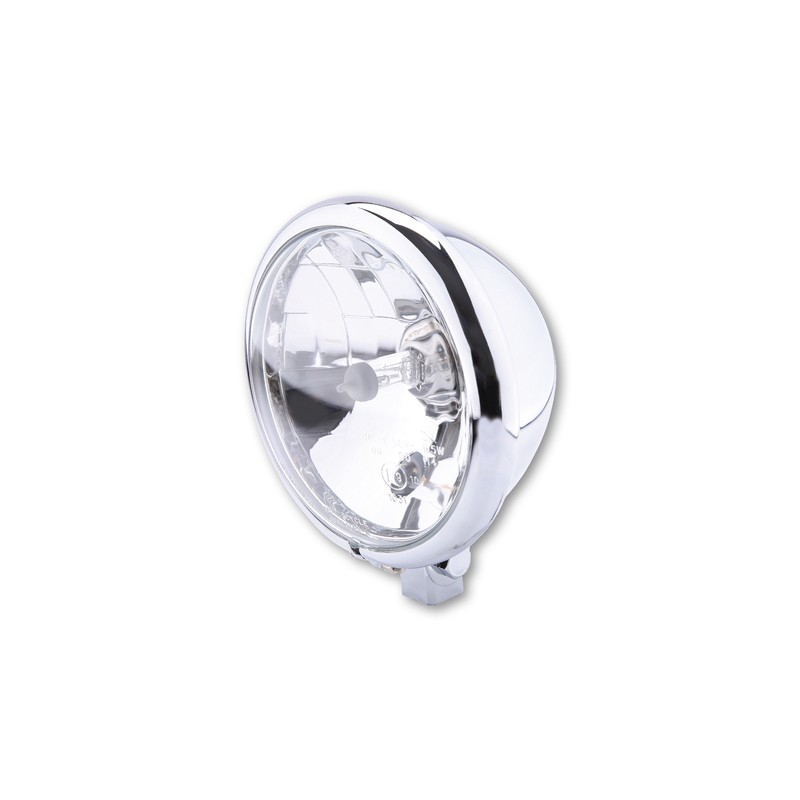

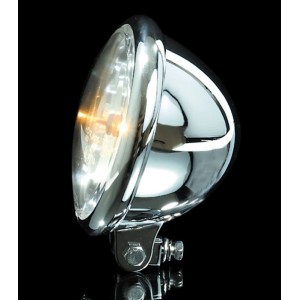

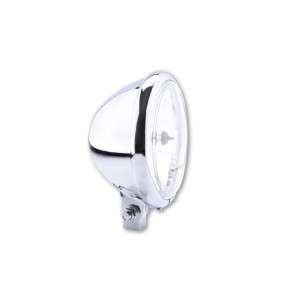

HIGHSIDER smart HIGHSIDER smart 5 3/4 inch headlight Bates Style, chrome

Faro delantero Bates Style HIGHSIDER inteligente HIGHSIDER inteligente de 5 3/4 pulgadas, cromado.

HIGHSIDER smart 5 3/4 inch headlight Bates Style

The popular main headlight with its classic style in hemisphere shape makes the pig headlight the perfect part for all conversion projects. The tested headlamp is also robust and easy to install.

Technical data:
- Metal housing
- Clear glass
- H4 insert with parking light
- H4 12V 60/55W
- Mounting point: bottom

Dimensions:
Diameter front: approx. 155 mm
Depth: 90 mm, with ring approx. 92 mm
Sunk hole diameter: 8.8 mm
Sunk hole depth: 10 mm
Screw: 9.4 x 20 mm
Thread: 24G 3/16, 7/32
Height mounting block to ring: approx. 27 mm
Height mounting block: approx. 30 mm
Width/depth mounting block: approx. 22 mm
Height mounting with block, center/center: approx. 39 mm

Diameter A = 157 mm
Diameter GA = 135 mm
Diameter I = 145 mm
T = 75 mm
R = 20 mm

Scope of delivery: 1 piece
