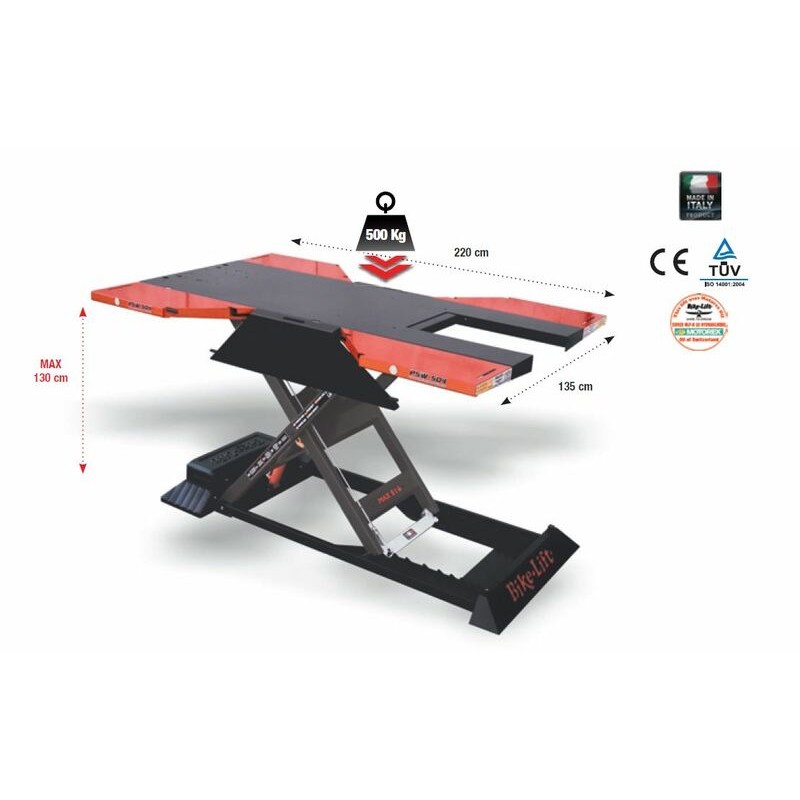

Elevador de taller BIKE LIFT Max 516 PSW

Note: The CE Declaration of Conformity can be found alongside the User Manual within the product itself.

The lift table MAX 516 PSW is an upgraded version of the MAX 516 Gate model to which was added newly patented PSW 516 side extensions. Also equipped with a central sliding trap gate to provide easy access to the vehicle for easy operation. A must for ATVs and 3-wheelers maintenance.

Technical details:

• Mechanism: Electro-hydraulic (By remote control)
• Input current: 230V / 50Hz
• Maximum capacity: 500Kg
• Maximum height: 120cm
• Minimum height: 20cm
• Safety locking: 8
• Rear sliding trap gate
• Tabletop dimensions with extensions : 210 x 135cm
• Run-up ramp dimensions: 82 x 51cm
• Rear sliding gate dimensions: 60 x 36cm
• Overall dimensions: 220 x 135cm
• Weight: 275Kg

Standard equipment:

• Central run-up ramp
• Side gutters set PSW 516
• Front safety bar
• Safety lock

Delivered in a wood box
