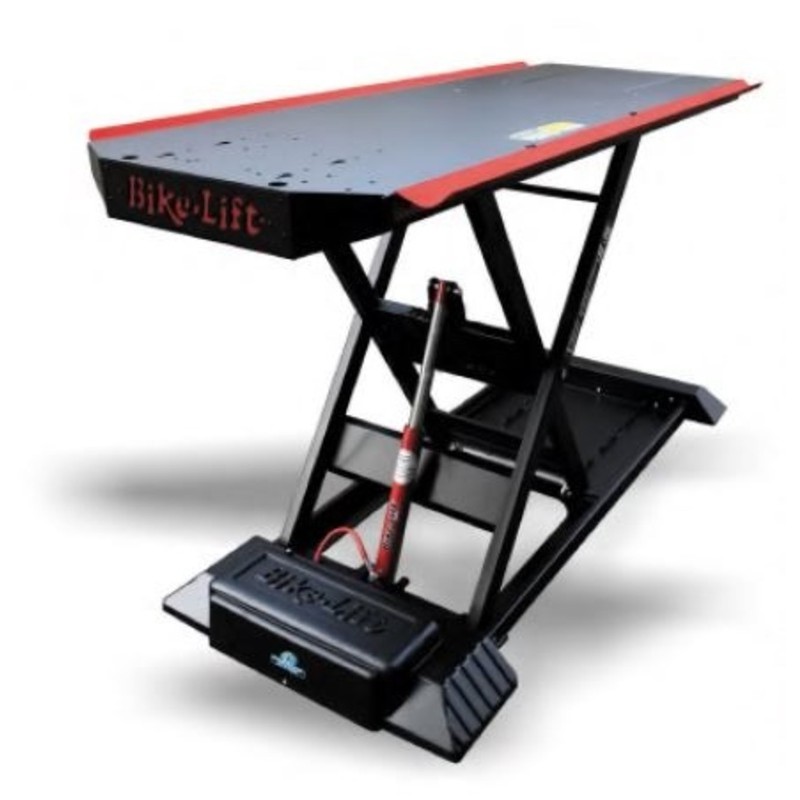

Elevador BIKE LIFT Absolute 756 Gate - Electro-hidráulico - AG-756-003

Note: The CE Declaration of Conformity can be found alongside the User Manual within the product itself.

The lift table ABSOLUTE 756 Gate is specially designed for heavier bikes. Capable of lifting up to 750Kg at a height of 1.30 meters, it is equipped with a rear sliding trap which provides access to the wheel for easy operation. With a steel structure extremely strong and stable, it offers working comfort and increased work safety. This version has an hydrohydraulic pump.

Technical details:

• Mechanism: Electro-hydraulic
• Input current: 230V / 50Hz
• Maximum capacity: 750Kg
• Maximum height: 130cm
• Minimum height: 19cm
• Safety locking: 8
• Rear sliding trap gate
• Tabletop dimensions: 220 x 75cm
• Gutters dimensions: 220 x 8,5cm
• Run-up ramp dimensions: 82 x 51cm
• Rear sliding gate dimensions: 60 x 36cm
• Overall dimensions: 230 x 92cm
• Weight: 260Kg
• Front safety bar
