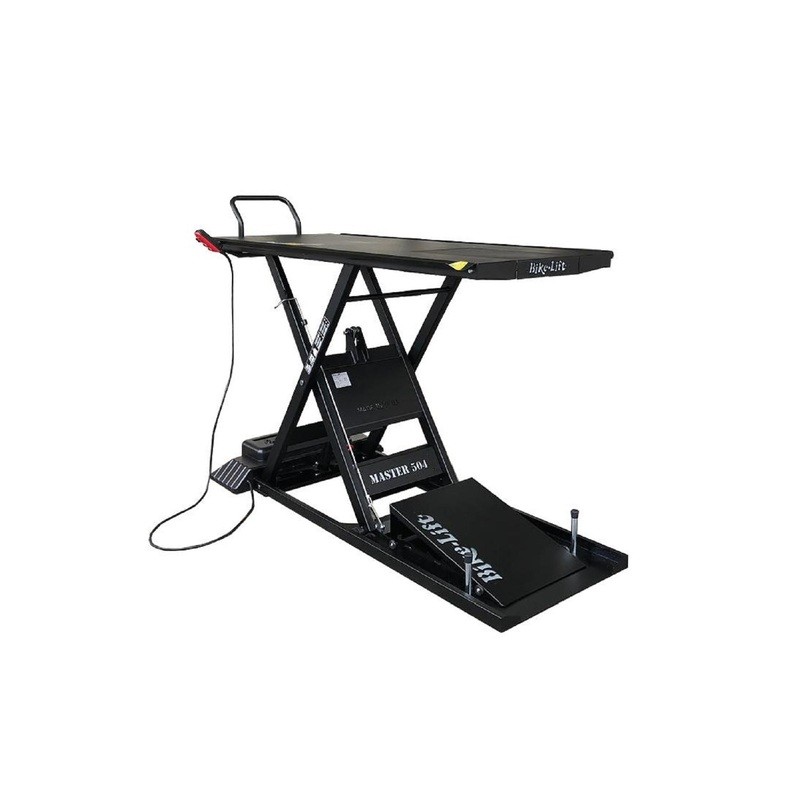

Elevador BIKE-LIFT Master 504 Negro - MA504-003

Note: The CE Declaration of Conformity can be found alongside the User Manual within the product itself.

Designed for all types of motorcycles, the Master 504 Gate offers many possibilities. The rear sliding trap gate provides easy access to the wheel for easy operation. Functional, reliable and easy-to-use, it's the lift tables reference. Access ramp can also slide under the table.

Technical details:

• Mechanism: Electro-hydraulic (By remote control)
• Input current: 230V / 50Hz
• Maximum capacity: 500Kg
• Maximum height: 130cm
• Minimum height: 20cm
• Safety locking: 8
• Rear sliding trap gate
• Tabletop dimensions: 210 x 75cm
• Gutters dimensions: 220 x 8,5cm
• Drop gate panel dimensions: 60 x 36cm
• Sliding Run-Up ramp dimensions: 70 x 50cm
• Overall dimensions: 220 x 92cm
• Weight: 250Kg

Standard equipment:

• Central run-up ramp
• Side gutters set
• Front safety bar
• Delivered in woodbox
