Elevador de taller Bike-Lift Absolute 756 Split - AS756-003

Note: The CE Declaration of Conformity can be found alongside the User Manual within the product itself.

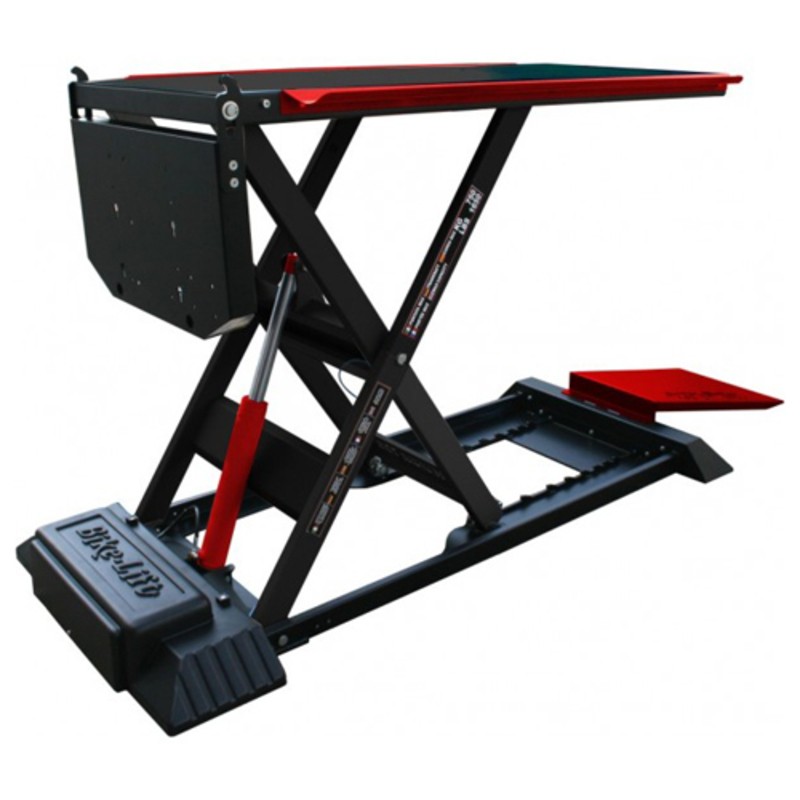

The lift table ABSOLUTE 756 Split is specially designed for heavier bikes. Capable of lifting up to 750 kg at a height of 1.30 meters, it is equipped with a front & rear sliding trap gate that provide easy access to the wheel for easy operation. With a steel structure extremely strong and stable, it offers working comfort increased work safely.

Technical details :

• Mechanism: Electro-hydraulic (By remote control)
• Input current: 230V / 50Hz
• Maximum capacity: 750Kg
• Maximum height: 130cm
• Minimum height: 19cm
• Safety locking: 8
• Rear sliding trap gate
• Tabletop dimensions: 220 x 75cm
• Gutters dimensions: 220 x 8,5cm
• Run-up ramp dimensions: 82 x 51cm
• Rear sliding gate dimensions: 60 x 36cm
• Split pivoting tabletop dimensions: 44.5 x 75cm
• Overall dimensions: 230 x 92cm
• Weight: 260Kg

Standard equipment :

• Central run-up ramp
• Side gutters set
• Front safety bar
• Delivered in woodbox
