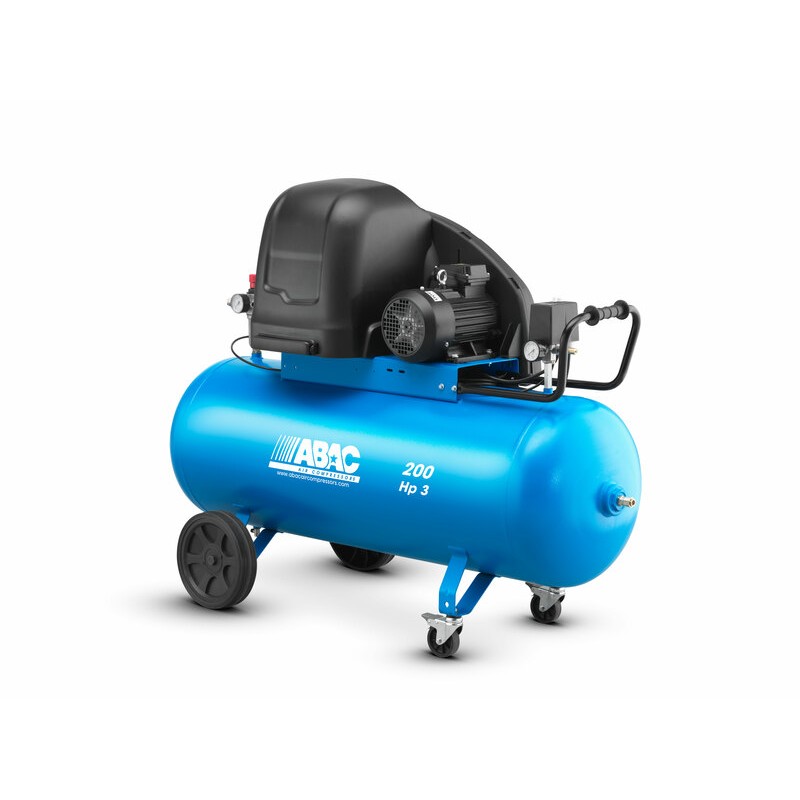

Compresor Silencioso ABAC 3cv/200L

Sound-proofed piston compressor with belt drive.

This compressor is designed for reduced noise levels and easy handling. Thanks to its sound-proof casing that reduces noise emissions, operators can work in greater comfort and under ideal conditions of protection and safety.

Technical characteristics:

• Single-stage, two cast cylinder, belt drive
• The Silent range: compressors with soundproofing covers
• Significantly reduce noise emissions
• Volume generated: 23,6m3/h
• Air pressure: 10bars
• Engine power: 3CV / 2,2KW
• Power supply: 230V single-phase / 50Hz
• Tank capacity: 200L
• Speed of rotation: 1050tr1050 rpm
• Noise level: 71dB (A)
• Dimensions L x w x H (mm): 1500 x 470 x 1190
• Weight:  94Kg

Caution:

To protect your pneumatic system, you are strongly advised to use an air treatment system (ref. 1125388) and an automatic capacitor purge (ref. 1125389)
