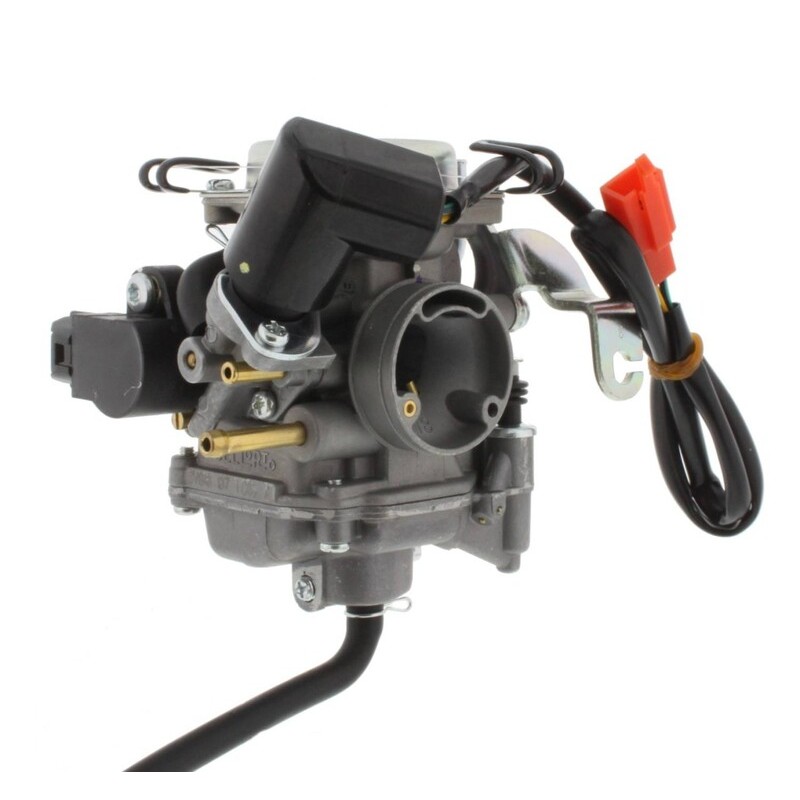

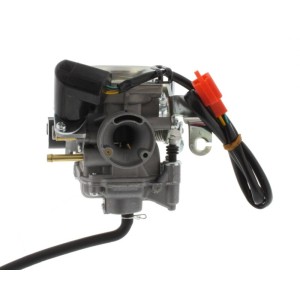

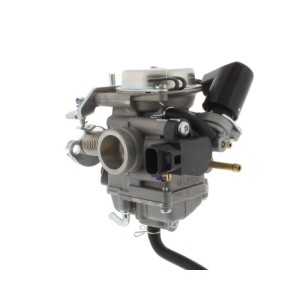

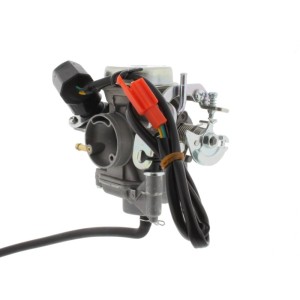

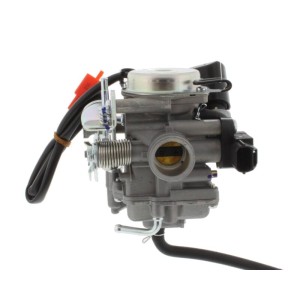

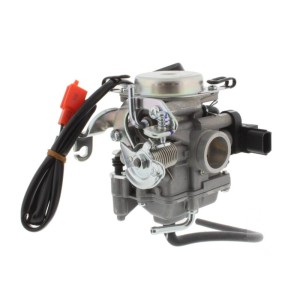

Carburador DELLORTO TKSVB Ø18 Z

Complete replacement carburetor for 4-stroke Euro5 scooters including electric cold start device (choke) and position sensor for the throttle valve. Such a carburetor is standard on 50cc 4-stroke SYM Fiddle 12’’ 45km/h (not suitable for 25km/h) and many China scooters built in newer years.
The carburetor is supplied completely ready for installation (tuned for 50cc Euro5 scooters).

• Main jet: 86 (7mm)
• Idle jet: 33
• Intake manifold connection width: 28mm
• Air filter connection width: 38mm

OEM: SYM 16100-AYU-000
